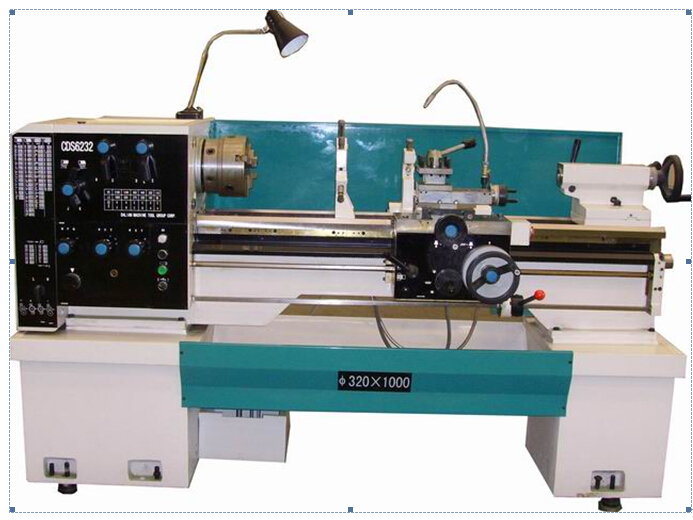

CDS6132 系列普通车床是大连机床集团结合世界车床制造知名企业产品研制开发的具有宜人性的普通车床。
在本机床上可以车削零件的外圆、内孔和端面、可以钻孔、铰孔和拉油槽，可以加工各种公制、英制、模数、径节螺纹，用户提出特殊定货还可以加工周节螺纹，本机床特别适合于小批量生产的加工车间和机械修理车间使用。
| PRODUCT NAME | CDS6132/ CDS6232 | CDS6136/ CDS6236 | |
| 产品型号 | 普通车床 | 普通车床 | |
| CAPACITY容量 | |||
| Swing over bed | 320mm | 360mm | |
| 床身上回转直径 | |||
| Swing over cross slide | 180mm | 200mm | |
| 床鞍刀架上回转直径 | |||
| Height of centers | 1020mm | 1040mm | |
| 中心高（地面至主轴中心） | |||
| Swing in gap | 520mm | 560mm | |
| 马鞍内回转直径 | |||
| Gap length (from spindle nose) | 138mm | ||
| 马鞍宽度（从主轴端面） | |||
| Distance between centers | 500mm/750mm/1000mmmm | ||
| 中心距 | |||
| SPINDLE主轴 | |||
| Spindle nose | C6或D6(凸轮锁紧) | ||
| 主轴头形式 | |||
| Taper of spindle bore | MT6 | ||
| 主轴孔锥度 | |||
| Spindle centre height | 160mm | 180mm | |
| 主轴中心高度 | |||
| Spindle bore | 52mm | ||
| 主轴通孔 | |||
| No.of Spindle speed | 12 | ||
| 主轴转速级数 | |||
| Spindle speed ranges | 44-1600 / 59-2100 rpm | ||
| 主轴转速范围 | |||
| Maximum spindle motor power | 双速电机 2.2/3.3 kW ( 3/4.5HP) | ||
| 主电机最大功率 | |||
| BED AND SLIDE 床身和滑板 | |||
| Width over bedways | 280mm | ||
| 床身导轨宽度 | |||
| Cross slide travel - X axis | 180mm | ||
| X轴横向滑板行程 | |||
| Travel of top slide | 115mm | ||
| 小刀架滑板行程 | |||
| Max.dimension of tool shank | 20x 20mm | ||
| 车刀刀杆的最大尺寸 | |||
| Cros feed | 0.01-0.33mm/rev | ||
| 横向进给量 | |||
| Longitudinalo feed | 0.03-1.0mm/rev | ||
| 纵向进给量 | |||
| Number of Imperial Pitches | 52 | ||
| 英制螺纹种数 | |||
| Range of Imperial Pitches | 2 – 56TPI | ||
| 英制螺纹范围 | |||
| Number of Diametral Pitches | 33 | ||
| 径节螺纹种数 | |||
| Range of Diametral Pitches | 6 - 112DP | ||
| 径节螺纹范围 | |||
| Number of Metric Pitches | 40 | ||
| 公制螺纹种数 | |||
| Range of Metric Pitches | 0.4 - 14mm | ||
| 公制螺纹范围 | |||
| Number of Module Pitches | 46 | ||
| 模数螺纹种数 | |||
| Range of Module Pitches | 0.2 – 3.5 MOD | ||
| 模数螺纹范围 | |||
| TAILSTOCK尾架 | |||
| Tailstock quill diameter | 50mm | ||
| 尾架套筒直径 | |||
| Tailstock quill taper | No 4 MT | ||
| 尾架套筒锥孔（莫氏） | |||
| Tailstock quill travel | 125mm | ||
| 尾架套筒行程 | |||
| SPACE AND WEIGHT体积和重量 | |||
| Overall machine length | 1600mm/1850mm/2100mm | ||
| 机床总长度 | |||
| Overall machine width | 910mm | ||
| 机床总宽度 | |||
| Overall machine height | 1150mm | 1170mm | |
| 机床总高度 | |||
| Overall machine weight 整机重量 | |||
| Distance between centers | 500mm | 980kg | 1030kg |
| 中心距 | 750mm | 1030kg | 1080kg |
| 1000mm | 1080kg | 1130kg | |
